How Reality Capture Enhances BIM Workflows

Tricia Stone — Fri, 31 Jan 2025 00:10:06 +0000

[vc_row type=”in_container” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” scene_position=”center” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none”][vc_column column_padding=”padding-5-percent” column_padding_tablet=”inherit” column_padding_phone=”padding-2-percent” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][vc_row_inner column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” text_align=”left” row_position=”default” row_position_tablet=”inherit” row_position_phone=”inherit” overflow=”visible” pointer_events=”all”][vc_column_inner column_padding=”padding-2-percent” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”bottom-left” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” overflow=”visible” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”advanced” border_left_desktop=”2″ border_left_tablet=”0″ border_bottom_tablet=”2″ column_border_color=”#26ee80″ column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][nectar_responsive_text text_color=”#014556″ font_size_desktop=”22px” font_line_height=”1.3″]In modern construction and infrastructure development, the need for precise planning and collaboration has never been greater. Reality Capture technologies such as LiDAR scanning, photogrammetry, and 3D scanning have become critical tools for enhancing Building Information Modeling (BIM) workflows.[/nectar_responsive_text][/vc_column_inner][/vc_row_inner][vc_column_text]In modern construction and infrastructure development, the need for precise planning and collaboration has never been greater. Reality Capture technologies such as LiDAR scanning, photogrammetry, and 3D scanning have become critical tools for enhancing Building Information Modeling (BIM) workflows. These technologies bridge the gap between the physical and digital worlds, providing highly accurate data that improves project coordination and reduces errors throughout the construction lifecycle.

What is Reality Capture in Construction?

Reality Capture refers to the process of using advanced technologies like LiDAR scanning and photogrammetry to create detailed 3D representations of physical spaces. This data can be seamlessly integrated into BIM models, providing a highly accurate digital twin of a construction site or building.

Technologies commonly used for Reality Capture include:

LiDAR Scanning: Uses laser pulses to generate precise point clouds for detailed site mapping.

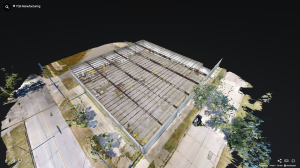

Photogrammetry: Captures 3D data through high-resolution images taken from drones.
3D Laser Scanning: Captures complex geometries and structures with exceptional accuracy.

The Role of Reality Capture in BIM Workflows

Integrating Reality Capture with BIM ensures a more efficient design and construction process by improving accuracy and collaboration between stakeholders.

1. Enhanced Data Accuracy for BIM Models

Reality Capture provides high-fidelity 3D data that can be directly imported into BIM software. This real-world data ensures that BIM models reflect actual site conditions, reducing the risk of discrepancies between digital plans and physical reality.

Minimized Measurement Errors: LiDAR and photogrammetry data improve precision, reducing manual measurement mistakes.
Accurate Site Representation: Capture complex structures and terrain features accurately, even in challenging environments.

2. Improved Coordination and Collaboration

By integrating Reality Capture data into BIM models, all stakeholders—architects, engineers, and contractors—work from a single, accurate model.

Clash Detection: Early identification of design conflicts before construction begins.
Remote Collaboration: Teams can review site data remotely, reducing the need for physical site visits.
Centralized Data Sharing: Sharing point cloud data ensures all teams have access to the same information.

3. Streamlined Construction Progress Tracking

Reality Capture helps teams monitor construction progress in real-time by comparing current site data with the original BIM models.

Progress Verification: Confirm construction phases align with the original design.
Reduced Rework: Early identification of deviations minimizes costly rework.

Applications of Reality Capture in BIM Workflows

Reality Capture technology is beneficial at multiple stages of the construction process, including:

Pre-Construction Site Analysis: Capture existing conditions before design begins.
Construction Phase: Monitor progress and ensure project alignment.
Post-Construction and Facility Management: Provide detailed as-built documentation for long-term use.

The integration of Reality Capture with BIM workflows is transforming how construction projects are managed. By providing highly accurate data from the start, these technologies ensure better decision-making, fewer errors, and improved collaboration across all project phases.[/vc_column_text][/vc_column][/vc_row]

The Basics of LiDAR Scanning for Construction Accuracy

Tricia Stone — Thu, 23 Jan 2025 00:07:02 +0000

[vc_row type=”in_container” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” scene_position=”center” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none”][vc_column column_padding=”padding-5-percent” column_padding_tablet=”inherit” column_padding_phone=”padding-2-percent” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][vc_row_inner column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” text_align=”left” row_position=”default” row_position_tablet=”inherit” row_position_phone=”inherit” overflow=”visible” pointer_events=”all”][vc_column_inner column_padding=”padding-2-percent” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”bottom-left” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” overflow=”visible” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”advanced” border_left_desktop=”2″ border_left_tablet=”0″ border_bottom_tablet=”2″ column_border_color=”#26ee80″ column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][nectar_responsive_text text_color=”#014556″ font_size_desktop=”22px” font_line_height=”1.3″]In the fast-paced world of construction and infrastructure development, accuracy and efficiency are essential for successful project outcomes.[/nectar_responsive_text][/vc_column_inner][/vc_row_inner][vc_column_text]In the fast-paced world of construction and infrastructure development, accuracy and efficiency are essential for successful project outcomes. One of the most transformative technologies helping AEC (Architecture, Engineering, and Construction) professionals achieve precision in their work is LiDAR scanning. This advanced method plays a vital role in construction documentation, offering millimeter-precise data for site analysis, progress tracking, and quality control.

So, what exactly is LiDAR scanning, and why is it becoming a standard in modern construction projects? Let’s break it down.

What is LiDAR Scanning?

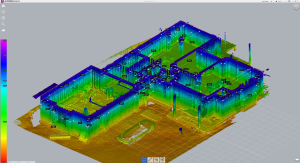

LiDAR stands for Light Detection and Ranging. It’s a remote sensing technology that uses laser pulses to measure distances with extreme accuracy. The system emits pulses of light, which bounce off surfaces and return to the sensor, allowing the creation of a detailed 3D point cloud—a collection of data points representing the scanned environment.

This technology can be mounted on drones, tripods, or handheld devices, making it highly versatile for both aerial and ground-level scanning. For construction site accuracy, LiDAR scanning excels in capturing complex environments with exceptional detail, making it ideal for both initial site assessments and ongoing project monitoring.

Why LiDAR Scanning Matters for Construction Projects

In construction, precision matters. A small measurement error can lead to costly rework, project delays, or even structural issues. LiDAR scanning helps mitigate these risks by providing millimeter-level accuracy throughout the entire construction lifecycle.

Key Benefits of LiDAR Scanning for Construction:

Unmatched Accuracy: LiDAR provides highly detailed 3D laser scans capable of measuring down to millimeter precision, reducing errors in site documentation and measurements.
Enhanced Progress Tracking: Capture as-built data during various stages of construction for real-time progress monitoring and comparison with project plans.
Improved Collaboration: Share 3D models and scans with stakeholders for clearer communication, minimizing misunderstandings between project teams and clients.
Time Efficiency: Traditional surveying can be time-consuming and labor-intensive. LiDAR scanning speeds up data collection, reducing project timelines while enhancing accuracy.
Reduced Rework: Accurate data minimizes discrepancies between the design and the actual build, helping avoid costly rework or project delays.

Applications of LiDAR Scanning in Construction

LiDAR scanning can be applied at various stages of a construction project, including:

1. Pre-Construction Site Analysis

Before breaking ground, LiDAR scanning can capture existing site conditions with detailed 3D models. This data allows architects and engineers to identify potential challenges early and adjust designs accordingly, ensuring the project starts on solid ground.

2. Construction Progress Monitoring

Regular LiDAR scans during construction provide accurate, real-time data on project progress. By comparing scans to the original BIM (Building Information Modeling) plans, teams can ensure work is completed to specification and make adjustments as needed.

3. Quality Control and As-Built Documentation

As-built LiDAR scanning ensures that the finished structure aligns with design specifications. This data can be essential for compliance verification, quality assurance, and post-construction documentation.

4. Renovations and Retrofits

For renovation projects, especially in Indiana’s historic or complex structures, LiDAR scanning captures the current state of the building with precision, allowing for accurate planning without invasive surveying.

LiDAR scanning has become an essential tool in modern construction projects, offering unparalleled accuracy, efficiency, and quality control. As technology continues to evolve, embracing 3D laser scanning ensures construction professionals can deliver projects with greater confidence and precision.[/vc_column_text][/vc_column][/vc_row]

The Importance of Virtual Tours in Accessible Spaces: Healthcare, Education, and Industrial Spaces

Tricia Stone — Thu, 19 Dec 2024 15:34:56 +0000

[vc_row type=”in_container” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” scene_position=”center” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none”][vc_column column_padding=”padding-5-percent” column_padding_tablet=”inherit” column_padding_phone=”padding-2-percent” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][vc_row_inner column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” text_align=”left” row_position=”default” row_position_tablet=”inherit” row_position_phone=”inherit” overflow=”visible” pointer_events=”all”][vc_column_inner column_padding=”padding-2-percent” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”bottom-left” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” overflow=”visible” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”advanced” border_left_desktop=”2″ border_left_tablet=”0″ border_bottom_tablet=”2″ column_border_color=”#26ee80″ column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][nectar_responsive_text text_color=”#014556″ font_size_desktop=”22px” font_line_height=”1.3″]By providing an immersive 360-degree experience, virtual tours allow users to explore and interact with spaces remotely, offering an invaluable advantage for showcasing the functionality, design, and accessibility of spaces in sectors such as hospitals, schools, and factories.[/nectar_responsive_text][/vc_column_inner][/vc_row_inner][vc_column_text]In today’s increasingly digital world, the way we experience physical spaces is changing rapidly. Virtual tours have emerged as a game-changing tool across many industries, particularly in healthcare, education, and manufacturing. These sectors, which often require detailed planning, coordination, and compliance with strict standards, are using virtual tours to bring greater transparency and accessibility to their operations. For Architecture, Engineering, and Construction (AEC) firms, virtual tours are not only a powerful tool for client engagement but also a vital asset for improving project planning, marketing, and decision-making.

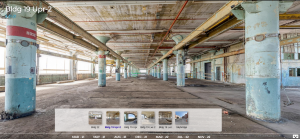

By providing an immersive 360-degree experience, virtual tours allow users to explore and interact with spaces remotely, offering an invaluable advantage for showcasing the functionality, design, and accessibility of spaces in sectors such as hospitals, schools, and factories. Let’s explore how virtual tours are revolutionizing these industries and why AEC companies should leverage this technology.

Healthcare: Enhancing Design and Accessibility

In the healthcare industry, facility design is critical not just for aesthetics but for functionality and patient safety. From operating rooms and intensive care units to patient recovery wards and emergency areas, every aspect of a hospital or healthcare facility must be designed with precision. Virtual tours offer a way to visualize these complex spaces during the design and construction phase, providing hospital administrators, medical staff, and investors with the ability to give feedback before the space is finalized.

1. Remote Accessibility for Key Stakeholders

Virtual tours allow medical professionals and key decision-makers to explore a hospital’s layout without needing to be physically present. For instance, architects and engineers can present designs to hospital staff and gather feedback on room layouts, equipment placement, and patient flow. This is especially important during the construction phase, where adjustments to the design may be required to meet the needs of healthcare professionals. The ability to walk through a virtual environment ensures that any necessary changes can be made before construction is complete, reducing the risk of costly modifications later on.

2. Optimizing Patient Experience

For patients and their families, virtual tours of healthcare facilities provide comfort and transparency. Patients can explore the layout of a hospital before arriving for treatment, allowing them to familiarize themselves with areas like waiting rooms, recovery areas, and specialized care units. This is particularly helpful for individuals with mobility challenges or those experiencing anxiety about a hospital visit, as it allows them to mentally prepare for their stay.

In addition, hospital administrators can use virtual tours to showcase the accessibility features of the facility, ensuring that the hospital meets ADA (Americans with Disabilities Act) compliance and other accessibility standards. Virtual tours provide a dynamic way to demonstrate features like wheelchair ramps, accessible bathrooms, and specialized patient rooms designed for individuals with disabilities.

3. Streamlined Design Feedback

For AEC firms, virtual tours offer a powerful tool to gather real-time feedback from hospital staff during the design and construction phases. By creating a 360-degree representation of the facility, healthcare professionals can “walk through” the space and offer insights into how design choices will impact daily operations. For example, they may recommend changes to the layout of an operating room or suggest alternative locations for critical equipment to improve workflow efficiency. This level of collaboration between the construction team and healthcare providers results in a more functional and patient-centered facility.

Education: Creating Collaborative and Accessible Learning Spaces

Educational institutions, including schools, colleges, and universities, require spaces that foster learning, collaboration, and innovation. As competition for attracting students intensifies, many educational institutions are looking for ways to showcase their campuses and learning environments to prospective students, faculty, and donors—especially those who may be unable to visit in person. This is where virtual tours can make a significant impact.

1. Showcasing Campus Layout and Facilities

Virtual tours allow educational institutions to highlight the unique aspects of their campuses in a way that static photos or brochures simply cannot. A 360-degree tour enables prospective students to explore classrooms, libraries, dormitories, and recreational facilities remotely, providing a true sense of the environment. For AEC firms working on new builds or renovations, virtual tours can be used to showcase completed projects to the institution’s administration or potential donors.

2. Promoting Accessibility in Learning Spaces

Ensuring accessibility in educational environments is crucial, especially for institutions catering to diverse student populations, including those with disabilities. Virtual tours can showcase accessible features such as elevators, wheelchair ramps, and adjustable seating in lecture halls, ensuring that facilities meet ADA compliance and other standards. These tours provide a clear visual representation of how the institution supports inclusivity and accessibility.

3. Engaging Stakeholders Remotely

For educational institutions looking to secure funding or donations, virtual tours offer a powerful way to engage donors and stakeholders. These tours can be customized to highlight key areas of the campus, including state-of-the-art labs, performance spaces, or athletic facilities. Donors can take a virtual walk through these spaces, experiencing firsthand how their contributions will enhance the institution’s infrastructure and benefit the student body.

Factories: Demonstrating Efficiency, Safety, and Workflow

Factories and industrial environments are typically designed with efficiency, safety, and functionality in mind. These facilities often include complex layouts, with specific zones for production, storage, and quality control. Virtual tours enable AEC firms and industrial designers to demonstrate how their projects meet stringent safety standards, optimize workflow, and incorporate cutting-edge technologies.

1. Pre-Construction Visualization

Before construction even begins, virtual tours can provide factory owners and operators with a clear understanding of how the space will look and function once completed. This allows them to visualize production lines, storage areas, and other critical zones in real time. Adjustments can be made to improve workflow or accommodate equipment before construction progresses too far, ensuring the space is optimized for maximum efficiency.

2. Ensuring Safety Compliance

Safety is paramount in any industrial setting, and virtual tours provide a way to verify that a facility meets safety standards before it is operational. For example, factory owners can use a virtual tour to assess the placement of emergency exits, fire safety systems, and evacuation routes. Virtual tours also allow health and safety officers to conduct pre-construction reviews and provide feedback on the layout to ensure compliance with OSHA (Occupational Safety and Health Administration) regulations.

3. Remote Training and Facility Walkthroughs

In addition to improving the design process, virtual tours can be used for remote training and onboarding. New employees or factory operators can take virtual walkthroughs of the facility to familiarize themselves with the layout, equipment, and safety protocols. This is especially useful for international or remote teams who may not have access to the site during the construction phase.

Why AEC Companies Should Invest in Virtual Tours

For AEC companies, virtual tours represent a powerful tool that can enhance both project development and client engagement. By adopting virtual tours, firms can:

Engage Clients More Effectively: Instead of relying solely on blueprints or 2D renderings, AEC firms can offer clients an immersive and interactive experience. This helps clients better understand design concepts, leading to improved communication and a clearer vision for the project.
Cost-Effective Marketing: Virtual tours can be shared easily on websites, social media, and other digital platforms, providing continuous exposure for completed projects. They offer a cost-effective way to market real estate developments, educational facilities, or industrial spaces without the need for physical tours.
Increase Decision-Making Speed: Virtual tours allow stakeholders to assess spaces remotely, speeding up decision-making processes and reducing the time spent on in-person visits.
Demonstrate Innovation: By offering cutting-edge tools like virtual tours, AEC firms can showcase their commitment to technology and innovation, differentiating themselves from competitors.

Virtual tours are transforming the way healthcare, education, and industrial facilities are designed, presented, and experienced. By offering an immersive, 360-degree view of spaces, these tours improve accessibility, enhance decision-making, and streamline design processes. For AEC companies, virtual tours are an invaluable tool to engage clients, promote projects, and ensure that spaces are both functional and accessible.

Whether it’s showcasing the patient-centered design of a new hospital, highlighting the collaborative spaces of a modern university, or demonstrating the efficiency of a cutting-edge factory, virtual tours provide a window into the future of design and construction. As the technology continues to evolve, virtual tours will only become more integral to the success of AEC projects.[/vc_column_text][/vc_column][/vc_row]

Impact on Cost, Quality, and Delivery in AEC Projects

Tricia Stone — Thu, 05 Dec 2024 17:06:44 +0000

[vc_row type=”in_container” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” scene_position=”center” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none”][vc_column column_padding=”padding-5-percent” column_padding_tablet=”inherit” column_padding_phone=”padding-2-percent” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][vc_row_inner column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” text_align=”left” row_position=”default” row_position_tablet=”inherit” row_position_phone=”inherit” overflow=”visible” pointer_events=”all”][vc_column_inner column_padding=”padding-2-percent” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”bottom-left” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” overflow=”visible” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”advanced” border_left_desktop=”2″ border_left_tablet=”0″ border_bottom_tablet=”2″ column_border_color=”#26ee80″ column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][nectar_responsive_text text_color=”#014556″ font_size_desktop=”22px” font_line_height=”1.3″]By deploying drone photogrammetry and As-Built Scanning, the project team was able to quickly remap the site, identify problem areas, and implement corrective measures within days—saving an estimated $15,000 in potential rework costs and keeping the project on schedule.[/nectar_responsive_text][/vc_column_inner][/vc_row_inner][vc_column_text]In the fast-paced world of Architecture, Engineering, and Construction (AEC), efficiency, precision, and timely delivery are essential to the success of any project. With increasing demands for faster construction times and tighter budgets, technology is pivotal in enabling professionals to meet these challenges. One of the most transformative technologies in recent years has been Reality Capture—the process of using advanced scanning tools to create accurate, data-rich 3D models of physical environments. By leveraging tools such as LiDAR, drones, and photogrammetry, AEC professionals are significantly improving project outcomes in terms of cost, quality, and delivery.

Cost Efficiency through Automation and Accuracy

One of the most significant advantages of Reality Capture is its ability to streamline traditional, labor-intensive documentation processes. Traditional site surveys and documentation require considerable time, effort, and manual labor. Teams must spend days or even weeks capturing measurements, mapping out terrain, and drawing up detailed site plans.

Reality Capture technologies like As-Built Scanning and drone photogrammetry provide a faster, more accurate alternative. Using advanced sensors and software, these technologies can capture comprehensive spatial data in hours, dramatically reducing the time required for documentation and minimizing the need for manual measurements. The data gathered is highly accurate, ensuring that project teams work with precise, reliable information from the outset.

Moreover, project managers can easily compare real-world conditions with design plans by creating a digital 3D model or point cloud of the site. This allows them to spot discrepancies early in the process, before they become significant issues. For example, if a site feature like a foundation footer is slightly out of position, this can be detected in the early stages using Reality Capture, saving time and preventing expensive mistakes down the line.

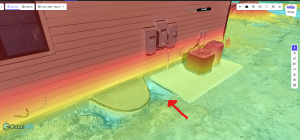

Regular site scans throughout the project lifecycle also enable teams to monitor progress accurately, providing an additional layer of cost control. Early detection of potential issues, such as misaligned structures or unanticipated terrain features, allows project teams to make timely adjustments, reducing the risk of budget overruns.

Cost Efficiency in Action:

Consider a construction project in Indiana that faced potential delays due to inaccurate ground-level measurements. By deploying drone photogrammetry and As-Built Scanning, the project team was able to quickly remap the site, identify problem areas, and implement corrective measures within days—saving an estimated $15,000 in potential rework costs and keeping the project on schedule.

Improved Quality Control and Reduced Errors

Construction projects often face quality issues due to inaccuracies in design and execution. Whether it’s a minor deviation in the positioning of structural elements or a larger problem like uneven terrain affecting building foundations, small errors can escalate into significant issues if not detected early. This is where Reality Capture plays a critical role in enhancing quality control.

Using tools like LiDAR and 3D laser scanning, teams can capture as-built conditions with unparalleled accuracy, creating a digital replica of the physical environment. These digital models can then be compared against the original BIM (Building Information Modeling) or CAD designs to ensure that construction proceeds according to plan. By regularly capturing data, teams can perform real-time progress assessments, detecting deviations from design specifications.

For example, if a wall or support structure is slightly out of alignment, this discrepancy can be identified immediately using Reality Capture tools. Project teams can address the issue before it compounds, ensuring that all elements of the build meet the necessary quality standards. This not only improves the overall quality of the project but also boosts client satisfaction by ensuring that the final product matches their expectations.

Additionally, by maintaining a digital record of the entire project, teams can provide stakeholders with detailed progress reports and visual documentation at every stage. This builds transparency and trust while offering a valuable resource for post-construction maintenance or future renovations.

Example of Quality Improvement:

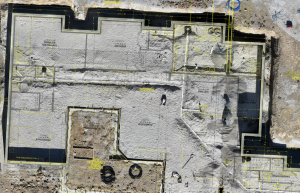

In a project in Fort Wayne, we were able to use orthomosaic photogrammetry overlayed with 2D floor plans to identify plumbing location errors prior to pouring concrete. We complete a drone scan of the site before infrastructure items like electrical and plumbing are encapsulated in concrete. With an orthomosaic of these items exposed we can overlay a 2D drawing and ensure they are both present and in the correct locations.

Faster Project Delivery and Enhanced Coordination

Time is one of the most valuable resources in construction, and Reality Capture significantly enhances project delivery speed by reducing time-consuming manual tasks and allowing faster decision-making. In traditional construction workflows, gathering the necessary data from field surveys can take days or weeks, which delays subsequent phases of the project. By contrast, Reality Capture technologies like drone-based photogrammetry and 3D scanning can complete this process in a fraction of the time.

With real-time data capture, project teams can access up-to-date site information instantly, enabling them to make informed decisions without waiting for manual survey reports. This reduces bottlenecks and ensures that all stakeholders are working with the most accurate, up-to-date information, minimizing the risk of miscommunication.

Additionally, by integrating Reality Capture into BIM workflows, project teams can simulate the entire construction process virtually before breaking ground. This allows for the early identification of potential issues, such as design clashes or terrain obstacles, which can be addressed before they cause delays. By aligning the virtual model with the real-world site data, BIM tools help streamline planning, coordination, and execution, accelerating the overall project timeline.

Impact on Delivery Time:

In a recent infrastructure project, using Reality Capture reduced project timelines by 20%. The team used drone photogrammetry to create highly accurate maps of a complex, multi-level site, allowing them to anticipate construction challenges early and adjust the design without delaying execution.

Enhanced Stakeholder Communication

Another key benefit of Reality Capture technologies is their ability to improve communication and collaboration among project stakeholders. By creating highly detailed, data-rich construction site models, teams can share this information with architects, engineers, contractors, and clients. These models visually represent the project, allowing all parties to see and understand the site’s conditions and progress in real-time.

This level of detail helps to bridge the communication gap between technical experts and non-technical stakeholders, ensuring that everyone is aligned on the project’s goals and milestones. For instance, a client or investor can “walk through” the construction site using a 360-degree virtual tour, allowing them to provide feedback and ask questions without needing to be physically present.

This real-time, visual communication helps to avoid misunderstandings and keeps all stakeholders engaged and informed, further accelerating decision-making and project timelines.

In the competitive AEC industry, Reality Capture technologies are proving to be invaluable tools for improving cost efficiency, ensuring high-quality outcomes, and speeding up project delivery. By integrating tools like LiDAR, 3D laser scanning, and drone photogrammetry into the construction process, project teams can significantly reduce errors, streamline workflows, and improve communication with stakeholders.

For AEC professionals looking to gain an edge in today’s market, adopting Reality Capture technologies is no longer an option—it’s a necessity. By reducing errors, enhancing quality, and ensuring timely project delivery, these technologies are transforming the way construction projects are managed and executed, leading to better outcomes for everyone involved.[/vc_column_text][/vc_column][/vc_row]

Bridging the Real World with BIM/VDC in AEC

Tricia Stone — Sat, 09 Nov 2024 16:05:30 +0000

[vc_row type=”in_container” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” scene_position=”center” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none”][vc_column column_padding=”padding-5-percent” column_padding_tablet=”inherit” column_padding_phone=”padding-2-percent” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][vc_row_inner column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” text_align=”left” row_position=”default” row_position_tablet=”inherit” row_position_phone=”inherit” overflow=”visible” pointer_events=”all”][vc_column_inner column_padding=”padding-2-percent” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”bottom-left” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” overflow=”visible” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”advanced” border_left_desktop=”2″ border_left_tablet=”0″ border_bottom_tablet=”2″ column_border_color=”#26ee80″ column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][nectar_responsive_text text_color=”#014556″ font_size_desktop=”22px” font_line_height=”1.3″]Reality Capture uses tools like laser scanning (LiDAR), photogrammetry, and 360 Walks to capture spatial data and create detailed representations of existing conditions.[/nectar_responsive_text][/vc_column_inner][/vc_row_inner][vc_column_text]Technology is revolutionizing how projects are designed and built in the fast-evolving world of architecture, engineering, and construction (AEC). One of the most transformative innovations is Reality Capture, which bridges the physical world with digital models through Building Information Modeling (BIM) and Virtual Design and Construction (VDC). By creating precise digital representations of real environments, Reality Capture enhances collaboration, boosts efficiency, and improves accuracy in construction projects.

What is Reality Capture?

Reality Capture uses tools like laser scanning (LiDAR), photogrammetry, and 360 Walks to capture spatial data and create detailed representations of existing conditions. These technologies accurately depict physical spaces, enabling real-world environments to be imported into BIM and VDC workflows seamlessly.

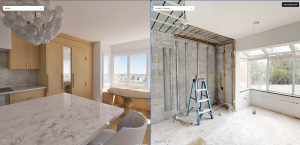

Integrating Reality Capture with BIM/VDC

BIM and VDC are now industry standards for managing building projects. BIM manages digital models of physical structures, while VDC simulates the construction process virtually. Integrating Reality Capture data into BIM/VDC workflows enhances accuracy, facilitates collaboration, and enables more informed decision-making.

1. Accurate As-Built Documentation

Using 3D laser scanning, Reality Capture provides precise as-built documentation. This is crucial in renovation or retrofit projects where an accurate understanding of the existing conditions is needed. Instead of relying on manual methods, which are prone to errors, Reality Capture offers real-time, accurate data, reducing design clashes and costly mistakes.

2. Enhanced Collaboration and Visualization

Reality Capture enables project teams to work from a unified, highly detailed model. This improves collaboration across architects, engineers, contractors, and owners. Virtual environments allow stakeholders to walk through projects before construction begins, helping to identify issues early and improve communication.

3. Clash Detection and Risk Mitigation

By integrating Reality Capture with BIM, project teams can detect clashes between different systems early in the design phase. Accurate 3D models minimize the risks of costly on-site issues, helping projects stay on time and within budget.

4. Construction Monitoring and Progress Verification

During construction, Reality Capture enables regular monitoring of the project. Teams can use LiDAR or drones to scan the site, ensuring work aligns with the original BIM model. Any deviations can be identified and corrected in real-time, minimizing rework.

5. Post-Construction and Facility Management

Reality Capture creates detailed as-built models that reflect the final state of construction. These models are invaluable for future facility management and renovations, providing accurate data for maintenance and upgrades.

Reality Capture is transforming the AEC industry by bridging the gap between the physical and digital worlds. From accurate as-built documentation to real-time construction monitoring, this technology offers enhanced collaboration, risk mitigation, and long-term efficiency.[/vc_column_text][/vc_column][/vc_row]

360 Walkthroughs: Changing the Game in Construction Site Reviews

Arnel Redota — Mon, 28 Aug 2023 13:36:05 +0000

[vc_row type=”in_container” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” scene_position=”center” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none”][vc_column column_padding=”padding-5-percent” column_padding_tablet=”inherit” column_padding_phone=”padding-2-percent” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][vc_row_inner column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” text_align=”left” row_position=”default” row_position_tablet=”inherit” row_position_phone=”inherit” overflow=”visible” pointer_events=”all”][vc_column_inner column_padding=”padding-2-percent” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”bottom-left” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” overflow=”visible” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”advanced” border_left_desktop=”2″ border_left_tablet=”0″ border_bottom_tablet=”2″ column_border_color=”#26ee80″ column_border_style=”solid” column_padding_type=”default” gradient_type=”default”][nectar_responsive_text text_color=”#014556″ font_size_desktop=”22px” font_line_height=”1.3″]In the rapidly evolving world of construction technology, 360 walkthroughs have emerged as a game-changer. It’s no longer about just recording progress, but about an interactive, holistic view of a site that offers invaluable insights in real-time.[/nectar_responsive_text][/vc_column_inner][/vc_row_inner][vc_column_text]HOW DOES IT WORK?

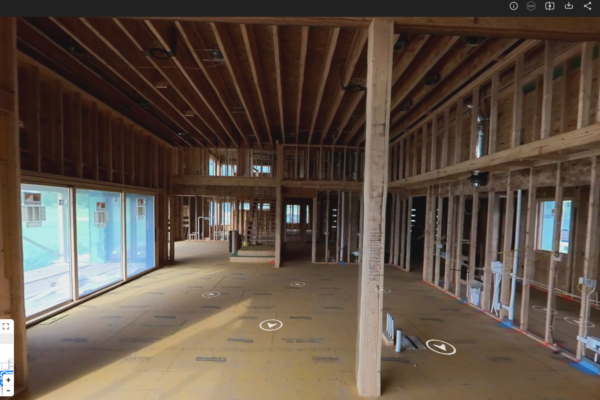

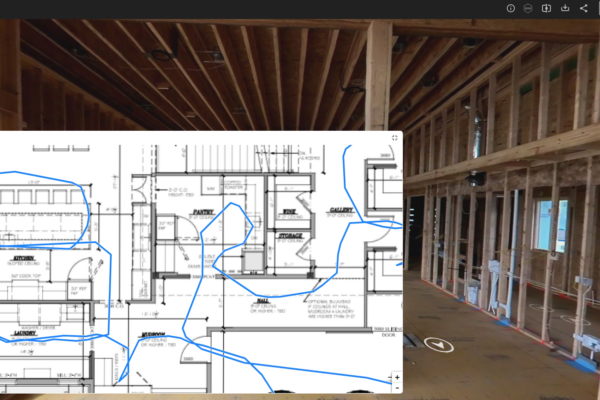

The process is precisely as it sounds. At OcculAIR, we integrate a 360 camera into our construction helmets and make our way through the site. These cameras don’t just take pictures – they also record the exact GPS location of each capture. Once the walkthrough is complete, all the data is uploaded to our processing platform, Drone Deploy. The magic happens here – the images and the exact walkthrough path are matched and superimposed on a floor plan. The result? An easily navigable, comprehensive view of the construction site.

These 360 walkthroughs differ slightly from virtual tours. Their essence lies in their efficiency – they’re designed to be swift, making frequent captures feasible. This quick capture ability ensures a tighter review process, allowing for more regular and detailed inspections.[/vc_column_text][vc_gallery type=”flickity_style” images=”173,174,175,176″ flickity_spacing=”default” flickity_controls=”pagination” flickity_overflow=”hidden” flickity_wrap_around=”wrap” flickity_desktop_columns=”1″ flickity_small_desktop_columns=”1″ flickity_tablet_columns=”1″ flickity_phone_columns=”1″ flickity_box_shadow=”none” image_loading=”default” onclick=”link_no”][vc_column_text]THE BENEFITS OF 360 WALKTHROUGHS[/vc_column_text][fancy-ul icon_type=”standard_dot” alignment=”left” spacing=”15px”]

Time-Efficiency: These walkthroughs are hosted on a web-based platform, providing easy access. Imagine the convenience during meetings, when stakeholders can pull up the latest captures and confirm the status of specific site features.
Virtual Multi-site Visits: For managers overseeing multiple sites, this tool is invaluable. With a dual-monitor setup, one can refer to blueprints on one screen and navigate the 360 walkthrough on the other, facilitating a virtual yet detailed site review.

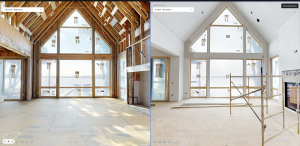

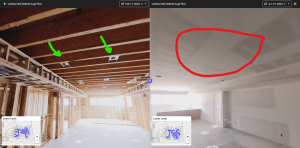

Historical Compare Feature: One of the standout features is the ability to overlay and compare various walkthroughs. Such comparisons are particularly beneficial for post-construction reviews, like checking installations post drywall.

[/fancy-ul][vc_column_text]THE OCCULAIR EDGE

Capturing images might seem straightforward, but there’s a depth of knowledge and understanding required. It’s imperative to be familiar with camera settings, especially when working on construction sites with challenging lighting conditions due to the lack of installed lights.Our expertise ensures each capture is clear, despite varying conditions.

Moreover, consistency is key. Our teams follow walkthrough maps to ensure each project is captured efficiently and systematically.[/vc_column_text][/vc_column][/vc_row]
